Photonic Crystal Fiber

An optical fiber or optical fiber is an adaptable, straightforward fiber made by drawing glass  (silica) or plastic to a width marginally thicker than that of human hair. Optical strands are utilized  most frequently as a way to send light[a] between the two finishes of the fiber and track down  wide use in fiber-optic correspondences, where they grant transmission over longer distances and  at higher transfer speeds (information move rates) than electrical links. Filaments are utilized  rather than metal wires since signals travel along them with less misfortune; likewise, strands are  safe from the electromagnetic impedance. Optical fibers normally incorporate a center  encompassed by a straightforward cladding material with a lower record of refraction. Light is  kept in the center by the peculiarity of complete inward reflection which makes the fiber go about  as a waveguide. Fibers that help numerous engendering ways or cross-over modes are called multi mode filaments, while those that help a solitary mode are called single-mode strands (SMF). Multi

mode filaments by and large have a more extensive center width and are utilized for brief distance  correspondence joins and for applications where high power should be communicated.

Photonic crystal fibres have wavelength-scale morphological microstructure running down their  length. This structure enables light to be controlled within the fibre in ways not previously possible  or even imaginable. Our understanding of what an optical fibre is and what it does is changing  because of the development of this new technology, and a broad range of applications based on  these principles is being developed

The field of applied science and designing worried about the plan and use of optical strands is  known as fiber optics. Photonic-crystal fiber (PCF) is a class of optical fiber in view of the  properties of photonic precious stones. It was first investigated in 1996 in the UK on the grounds  that its capacity to keep light in empty centers or with constrained qualities is unimaginable in  customary optical fiber. More explicit classes of PCF incorporate photonic-bandgap fiber (PCFs  that bind light by band hole impacts), holey fiber (PCFs utilizing air openings in their cross

segments), opening helped fiber (PCFs directing light by a traditional higher-record center changed  by the presence of air openings), and Bragg fiber (photonic-bandgap fiber framed by concentric  rings of the multi-facet movie). Photonic crystal fibers might be viewed as a subgroup of a more  broad class of micro structured optical filaments, where primary changes guide light, not just by  refractive index contrasts. Photonic bandgap fibers are optical strands where a photonic bandgap  impact as opposed to a fiber center locale with an expanded refractive record is used for directing  light. Such a directing system ordinarily works just in a restricted wavelength region.

As a rule, standard organized strands, for example, photonic crystal fiber, have a cross-segment  (typically uniform along the fiber length) micro-structured from one, two, or more materials,  generally regularly organized occasionally over a significant part of the cross-segment, normally  as a “cladding” surrounding a center (or a few centers) where light is bound. Most photonic crystal  fibers have been manufactured in silica glass, yet different glasses have additionally been utilized  to get specific optical properties (like high optical non-linearity). One very exciting feature of the  PCF technology is the possibility of realizing fibers that guide light in a hollow (air) core, using  the Photonic Bandgap (PBG) effect. The highly periodic structure of air holes in the cladding  of the fiber creates a photonic bandgap. This means that light of frequencies within the PBG is

not allowed to propagate out through the cladding and may be trapped in the core of the fiber.  In contrast to index-guiding fibers, there is no requirement on the refractive index of the core  region to be larger than the index of the cladding.

The scattering qualities of PCFs can be controlled to make filaments having zero, low, or irregular  scattering at noticeable frequencies. The scattering can likewise be straightened. Consolidating  these highlights with little mode field regions brings about remarkable nonlinear strands. By  changing the example of air openings or the materials utilized, it is feasible to control different  attributes of PCFs, for example, the single-mode cut-off frequency, and the nonlinear coefficient.  The plan adaptability is exceptionally huge, and originators can utilize a wide range of, captivating,  and odd air opening examples to accomplish explicit PCF boundaries. Expanding the air-filling  portion in the cladding regularly prompts multimode conduct. A circular center can make an  exceptionally birefringent fiber that is polarization-keeping up with.

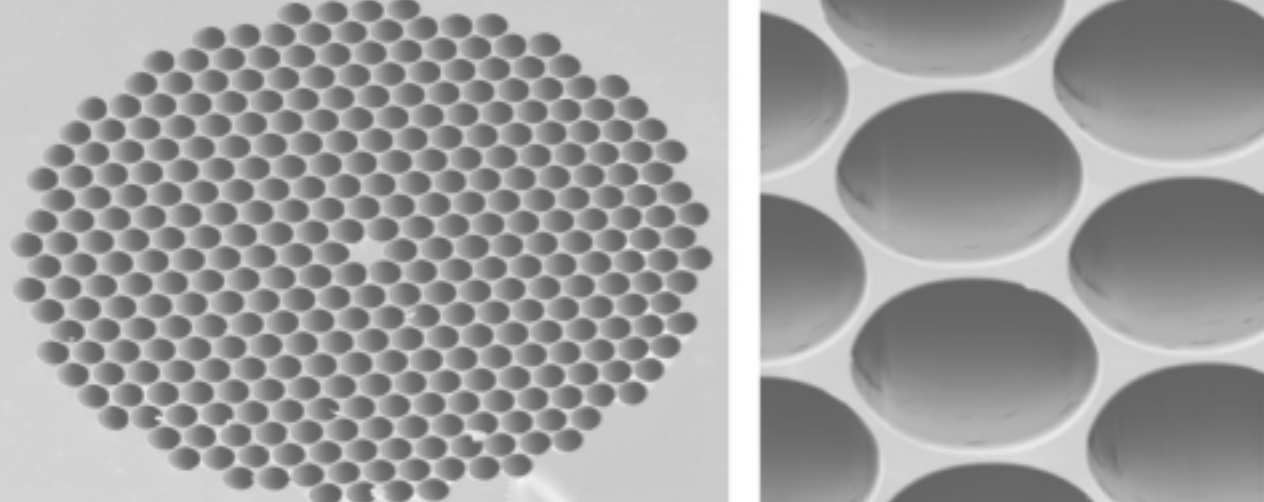

Fig: Structure of Photonic crystal fiber

Photonic crystal fibers are for the most part isolated into two fundamental classifications: Index  Guiding Fibers that have a strong center, and Photonic Bandgap Fibers that have occasional micro structured components and a center of low-record material. The uses of photonic crystal fibers  incorporate lasers, enhancers, scattering compensators, and nonlinear handling. Photonic gem fiber  structures are presently created in numerous research facilities overall utilizing a wide range of  methods. Applications of PCFs are found in a wide range of research fields like spectroscopy,  metrology, biomedicine, imaging, telecommunication, industrial machining, and military.

Photonic crystal fibers can be partitioned into two methods of activity, as indicated by their  instrument for repression. Those with a strong center, or a center with a higher typical record than  the micro-structured cladding, can work on a similar file core value as traditional optical fiber — be that as it may, they can have a lot higher compelling refractive record contrast among center and cladding, and thusly can have a lot more grounded confinement for applications in nonlinear  optical gadgets, polarization-keeping up with filaments, (or they can likewise be made with much

lower powerful file contrast). On the other hand, one can make a “photonic bandgap” fiber, in  which the light is restricted by a photonic bandgap made by the micro-structured cladding – such  a bandgap, appropriately planned, can limit light in a lower-file center, and, surprisingly, an empty  (air) center. Bandgap strands with empty centers might possibly dodge limits forced by accessible  materials, for instance, to make filaments that guide light in frequencies for which straightforward  materials are not accessible (on the grounds that the light is basically in the air, not in the strong  materials). One more possible benefit of an empty center is that one can powerfully bring materials  into the center, for example, a gas that will be dissected for the presence of some substance. PCF  can likewise be adjusted by covering the openings with sol-gels of comparable or different record  material to improve its transmittance of light.

Since the core has a higher file of refraction than the cladding, the light will be deeply restricted  in the event that the precise condition for complete inner reflectance is met. The fiber geometry  and piece decide the discrete arrangement of electromagnetic fields, or fiber modes, which can  engender in the fiber.

There are two expansive characterizations of modes, radiation modes, and directed modes.  Radiation modes do the energy of the center; the energy is immediately dispersed. Directed modes  are profoundly bound, and spread energy along the fiber, shipping data, and power. On the off  chance that the fiber center is sufficiently enormous, it can uphold numerous concurrent directed  modes.

The transmission capacity of an optical fiber decides the information rate. The system that restricts  a fiber’s data transmission is known as scattering. Scattering is the spreading of the optical  heartbeats as they travel down the fiber. The file of refraction changes relying upon frequency. In  this manner, various frequencies will go down an optical fiber at various speeds. This is known as  Chromatic Dispersion. Light power engendering in a fiber rots dramatically with length because  of retention and dispersing misfortunes. Lessening is the absolute most significant component in  deciding the expense of fiber optic telecom frameworks, as the need might have arisen to keep up  with OK sign levels.The Numerical Aperture (NA) of a fiber is defined as the sine of the largest  angle an incident ray can have for total internal reflectance in the core. Rays launched outside  the angle specified by a fiber’s NA will excite radiation modes of the fiber.

As a result, PCFs have become an attractive and endless research field including biomedical  Engineering, tomography, imaging such as tomography, and other promising applications in  different sectors. Therefore this talk first discusses the basic principle of PCFs and then focuses on  the expected roles of PCF in the future fiber industry.
